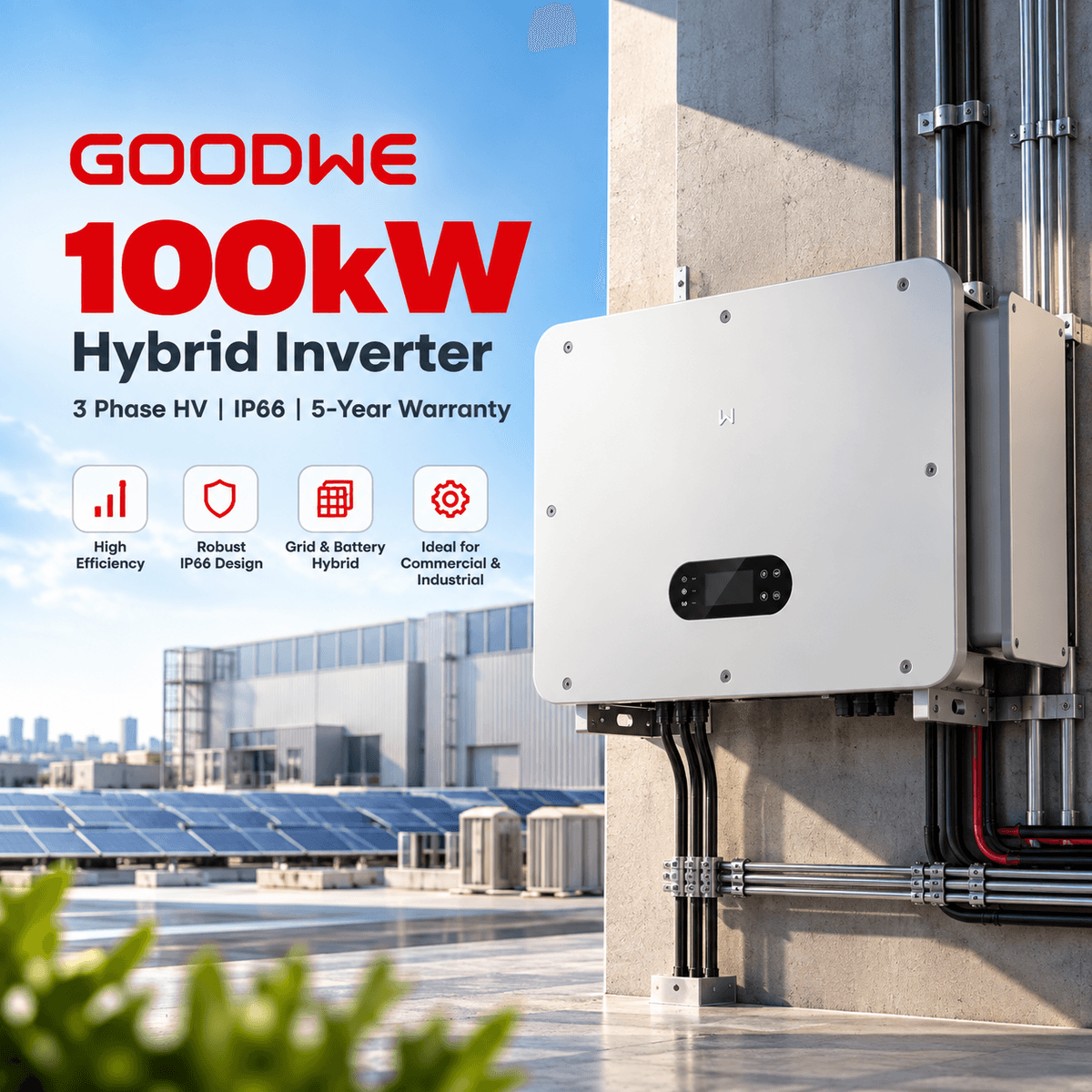

GoodWe GW100K-ET-G10 100KW Three Phase HV Hybrid Inverter
SKU: GW100K-ET-G10
(0 reviews)
Rs 21,00,000
Price updated: 04 Oct 2026
In Stock
Quantity
Delivery in 2-5 working days · Charges confirmed via WhatsApp
The GoodWe GW100K-ET-G10 is a 100kW three phase high voltage hybrid inverter from GoodWe's ET commercial series, designed for large commercial and industrial solar-plus-storage applications in Pakistan. With 8 independent MPPT inputs, 200% PV oversizing supporting up to 200kWp of solar panels, and dual independent battery inputs at 160A each, it is GoodWe's flagship commercial hybrid inverter for large-scale energy independence. UPS-level switching under 4ms ensures critical industrial loads experience no disruption during grid outages or load shedding.
- 100kW three phase output for large commercial and industrial properties
- 8 MPPTs with 200% PV oversizing for maximum solar harvest
- Dual independent battery inputs at 160A each for high power storage
- UPS-level switching under 4ms for critical load protection
- Generator start-stop control via DI/DO interfaces for automated management
- 150% AC overloading at 10 seconds for motor and compressor startup
- 110% unbalanced three phase output
- IP66 protection for outdoor installation
| Power | 100 kW |
|---|---|
| Phase | Three Phase |
| Type | HV Hybrid Inverter |
| Battery Voltage | High Voltage (160-950V) |
| MPPT | 8 |
| Warranty | 5 / 10 Years |
| Battery Nominal | 1000V |
| IP Rating | IP66 |
| Max Charging Current | 160A x2 |
| Max PV Input | 200000 Wp |
| Overloading | 150% @ 10s |
| Switching Time | <4ms |
5 / 10 Years manufacturer warranty. Contact us on WhatsApp for warranty claims.
Customer Reviews
–
0 reviews
- 5 star0
- 4 star0
- 3 star0
- 2 star0
- 1 star0
No reviews yet — be the first to share your experience.
Frequently Asked Questions
- The GoodWe GW100K-ET 100KW is designed for large commercial and industrial properties in Pakistan with three phase connections and peak loads of 70 to 90kW. Typical applications include large factories, textile mills, large hotels, commercial plazas, hospitals and educational institutions. At 100kW output with 150% overloading capability for 10 seconds, it handles large motor and compressor startup surges common in industrial environments.
- The GoodWe GW100K-ET 100KW supports 200% PV oversizing, meaning a maximum panel array of approximately 200kWp. With 8 independent MPPT inputs, the panel array can be distributed across multiple roof sections for maximum energy harvest from complex commercial rooftop layouts. With 645W panels this equates to approximately 310 panels.
- A 100kW commercial system in Pakistan requires high voltage lithium battery storage. The GoodWe GW100K-ET 100KW has dual independent battery inputs at 160A each, supporting high voltage batteries in the 160V to 950V range. For a commercial property running 50 to 60kW during a 4 hour backup window, approximately 200 to 240kWh of battery storage is needed. The GoodWe BAT-S series and Crown Micro C&I battery systems available from MartOnline are compatible options.
- Yes, the GoodWe GW100K-ET 100KW includes generator start-stop control via dedicated DI and DO interfaces. The inverter signals the generator to start when battery levels fall below a threshold and stops it once the battery reaches the target charge level. For large Pakistani commercial facilities with existing diesel generators, this integration reduces generator runtime and fuel consumption substantially.
- The GoodWe GW100K-ET 100KW delivers UPS-level switching under 4ms when transitioning from grid power to battery backup. Connected equipment including computers, servers, CNC machines and industrial controls experience no interruption during grid outages or load shedding. For Pakistani industrial facilities where even a brief power interruption causes production losses, this under 4ms switching is critical.
- The GoodWe GW100K-ET 100KW comes with GoodWe's commercial warranty terms. GoodWe is one of the world's top solar inverter manufacturers with commercial installations in over 100 countries. For commercial purchases in Pakistan, MartOnline provides genuine GoodWe commercial inverters with full manufacturer warranty support. Contact MartOnline via WhatsApp for pricing, warranty terms and system design for your commercial property in Pakistan.
