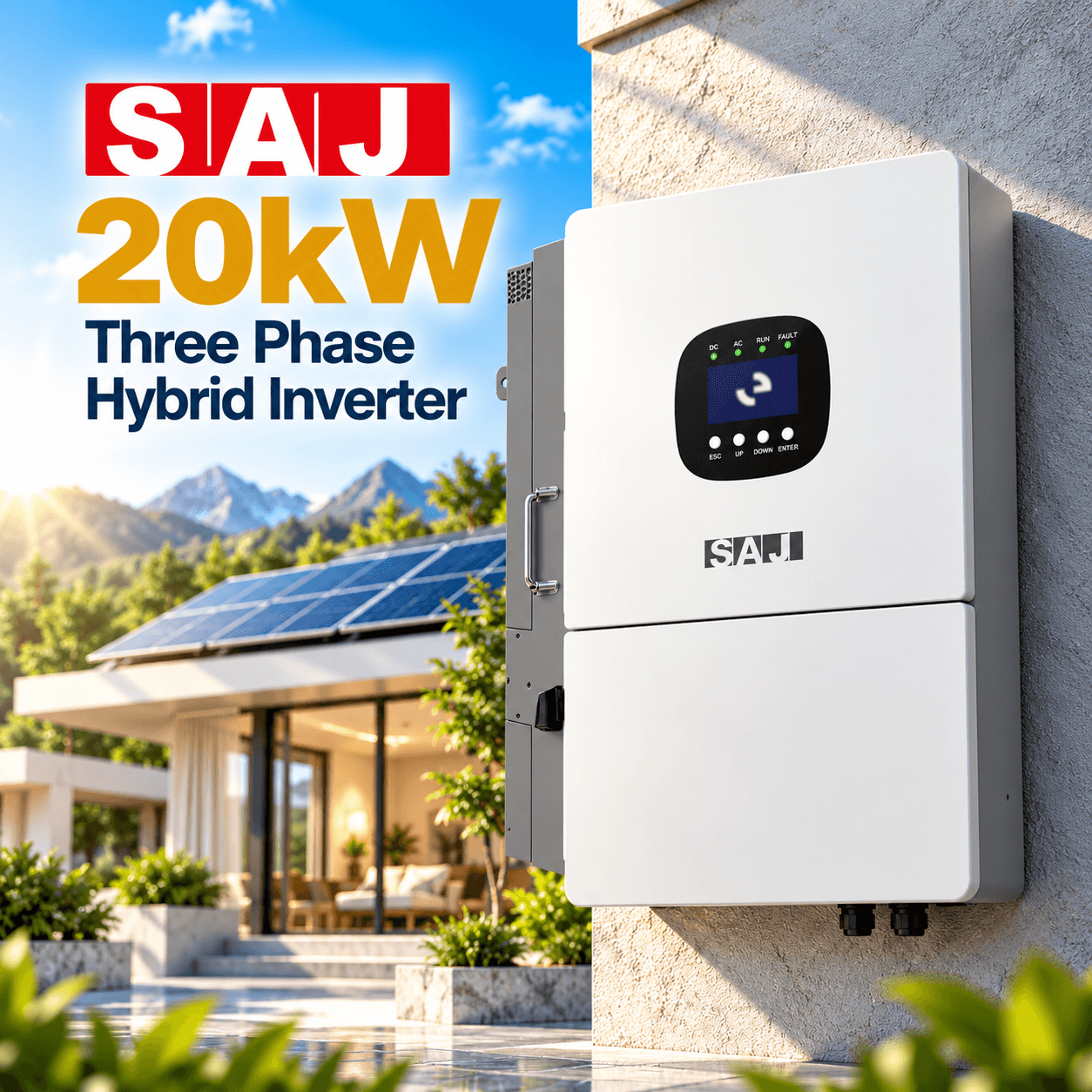

SAJ H2 20KW Three Phase LV Hybrid Inverter
Price updated: 04 Oct 2026
In Stock
Delivery in 2-5 working days · Free delivery
The SAJ H2 20kW Three Phase Low Voltage Hybrid Inverter is SAJ's most powerful LV three-phase model, delivering 20kW of continuous output for large commercial and industrial solar installations in Pakistan. With 350A fast charge/discharge, 40kWp PV capacity and ultralight design for easy installation, it is the complete commercial hybrid solution.
- 20kW three-phase output
- 350A fast charge/discharge current
- 40000 Wp maximum PV array capacity
- IP66 protection for all weather conditions
- 100% unbalanced output per phase
- Up to 10 units in parallel
- 75A bypass for whole building backup
| Power | 20 kW |
|---|---|
| Phase | Three Phase |
| Type | LV Hybrid Inverter |
| Battery Voltage | Low Voltage (40–60V) |
| MPPT | 2 |
| Warranty | 5 Years (extendable to 10) |
| Battery Type | LFP / Lead-Acid |
| Communication | CAN / RS485 / Wi-Fi / 4G (Optional) |
| Dimensions | 740×470×270 mm |
| Max Charging Current | 350A |
| Max DC Voltage | 1000V |
| Max Efficiency | 98.5% |
| Max PV Input | 40000 Wp |
| Weight | 53 kg |
5 Years (extendable to 10) manufacturer warranty. Contact us on WhatsApp for warranty claims.
Customer Reviews
–
0 reviews
- 5 star0
- 4 star0
- 3 star0
- 2 star0
- 1 star0
No reviews yet — be the first to share your experience.
Frequently Asked Questions
- The SAJ H2 20kW three phase is SAJ's most powerful low voltage three phase hybrid inverter, designed for large commercial and light industrial solar installations in Pakistan. It is ideal for medium-sized factories, large offices, hospitals, universities, hotels and commercial complexes with three phase grid connections and high electricity consumption. With 20000W of continuous output and support for up to 10 units in parallel, it provides the flexibility to build solar systems from 20kW to 200kW using a standardised, scalable approach without needing different inverter models.
- The SAJ H2 20kW accepts up to 40000 Wp of solar panel input — the highest in the SAJ H2 LV three phase series. This means you can connect 60 to 72 panels of 550W each for a large commercial solar installation. The 200% DC oversizing feature ensures optimal performance even during suboptimal solar conditions, which is particularly valuable in Pakistan's monsoon season from July to September when cloud cover reduces panel output. The 2 MPPT inputs each handle up to 40/20A of input current depending on model variant.
- The SAJ H2 20kW three phase supports a maximum battery charging and discharging current of 350A, which is the highest in the SAJ H2 LV range. This allows the inverter to charge a large battery bank extremely quickly during peak solar hours. For large commercial energy storage systems in Pakistan, the 350A current means you can effectively manage a battery bank of 32kWh or more without bottlenecking on charging speed. Multiple battery units like the SAJ 16kWh can be connected in parallel to build the required storage capacity.
- The SAJ H2 20kW three phase is suitable for light industrial applications in Pakistan including light manufacturing, food processing, textile units, cold storage and industrial workshops with three phase power requirements up to 20kW. For heavier industrial loads above 20kW, multiple units can be paralleled — up to 10 units giving 200kW total capacity. The IP66 protection, smart cooling, generator support and intelligent energy management make it robust enough for demanding industrial environments found across Pakistan's industrial zones in Karachi, Lahore, Faisalabad and Sialkot.
- The SAJ H2 20kW comes with a 5 year standard warranty from SAJ Electric, one of China's leading and internationally certified inverter manufacturers. The inverter achieves maximum efficiency of 98.5% with Euro efficiency of 98.0%, placing it among the most efficient commercial inverters in its class. For large commercial solar investments in Pakistan, the 5 year warranty combined with SAJ's global service network provides confidence in long-term performance. Extended warranty options may be available through authorised SAJ distributors in Pakistan.
