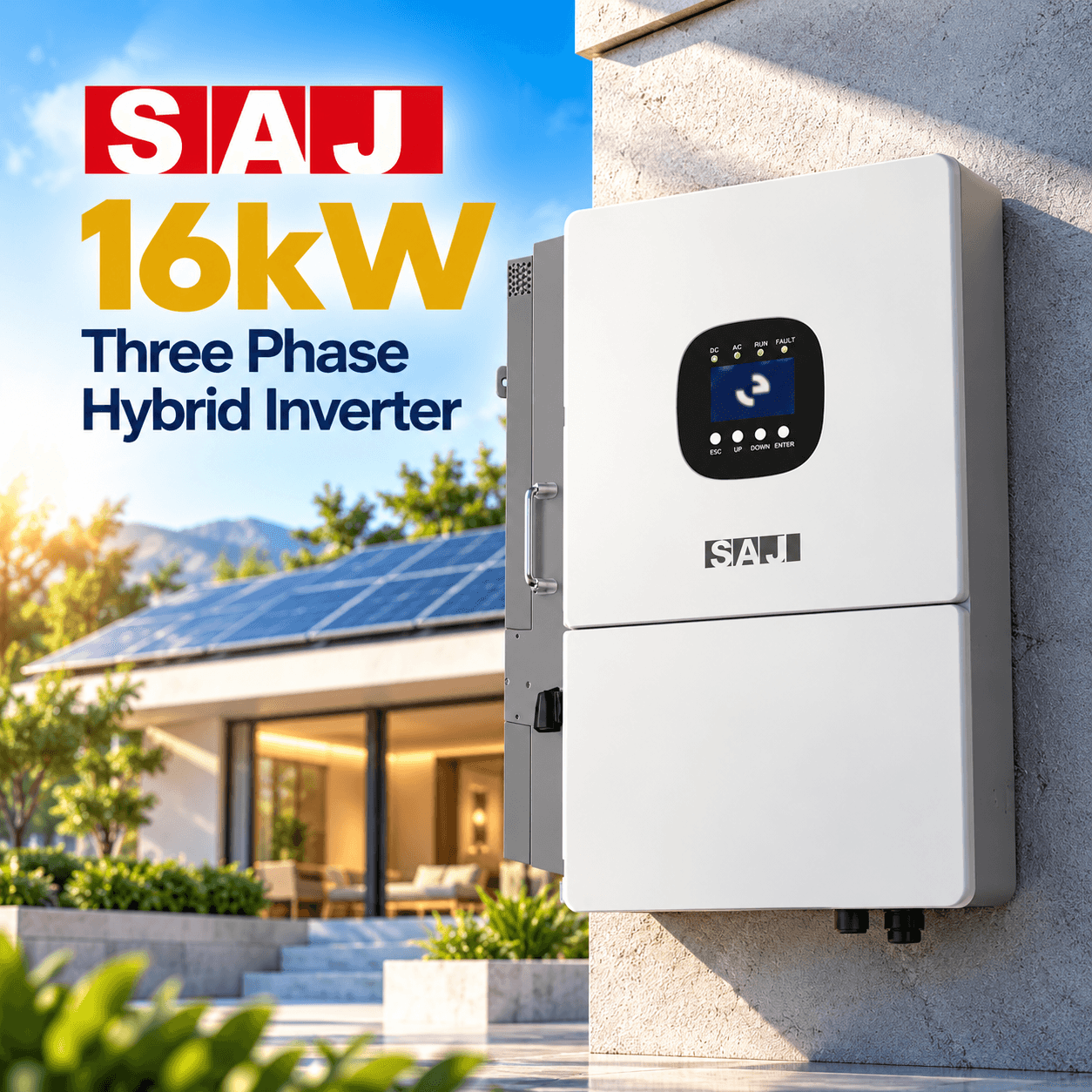

SAJ 16KW Three Phase Hybrid Inverter
Price updated: 04 Oct 2026
In Stock
Delivery in 2-5 working days · Free delivery
The SAJ H2 16kW Three Phase Low Voltage Hybrid Inverter delivers powerful commercial-grade solar backup for factories, offices and large commercial buildings in Pakistan. With 320A fast charge/discharge, IP66 protection and support for up to 10 units in parallel, it handles the most demanding three-phase installations.
- 16kW three-phase continuous output
- 320A fast charge/discharge current
- IP66 protection for outdoor installation
- 100% unbalanced output per phase
- Max. 10 units parallel — on-grid and off-grid
- 75A bypass for whole building backup
- CAN / RS485 / Wi-Fi / 4G communication
| Power | 16 kW |
|---|---|
| Phase | Three Phase |
| Type | LV Hybrid Inverter |
| Battery Voltage | Low Voltage (40–60V) |
| MPPT | 2 |
| Warranty | 5 Years (extendable to 10) |
| Battery Type | LFP / Lead-Acid |
| Communication | CAN / RS485 / Wi-Fi / 4G (Optional) |
| Dimensions | 740×470×270 mm |
| Max Charging Current | 320A |
| Max DC Voltage | 1000V |
| Max Efficiency | 98.5% |
| Max PV Input | 32000 Wp |
| Weight | 53 kg |
5 Years (extendable to 10) manufacturer warranty. Contact us on WhatsApp for warranty claims.
Customer Reviews
–
0 reviews
- 5 star0
- 4 star0
- 3 star0
- 2 star0
- 1 star0
No reviews yet — be the first to share your experience.
Frequently Asked Questions
- The SAJ H2 16kW three phase is designed for larger commercial and light industrial properties in Pakistan including medium-sized factories, large offices, shopping centres, hospitals and educational institutions with three phase electrical connections. With 16000W of continuous three phase output, it can handle industrial air conditioning systems, heavy machinery, production equipment, commercial refrigeration and building management systems simultaneously. For Pakistani businesses looking to achieve significant electricity cost savings and energy independence, the 16kW three phase is one of the most capable low voltage hybrid inverters available.
- The SAJ H2 16kW three phase has a maximum battery charging and discharging current of 320A, the highest in the SAJ H2 LV three phase range below the 20kW model. At 320A with a 51.2V battery bank, this translates to approximately 16.4kW of charging power, meaning the inverter can fully charge a 16kWh battery in under 1 hour when solar generation is at its peak. This high charging rate is particularly valuable in Pakistan where solar irradiance windows are limited and maximising energy storage during daylight hours is critical for overnight load coverage.
- The SAJ H2 16kW accepts up to 32000 Wp of solar panel input across 2 independent MPPT channels with 200% DC oversizing. In practice, this means you can connect 48 to 58 panels of 550W each for a full commercial solar installation. The maximum DC input voltage of 1000V and MPPT range of 160-950V accommodates long string configurations suited to large commercial rooftops. For Pakistani commercial properties with flat rooftops, the 16kW three phase supports efficient south-facing panel arrays that maximise generation throughout the year.
- Yes, the SAJ H2 16kW three phase supports net metering and grid export, making it fully compatible with NEPRA's net metering regulations for commercial solar systems in Pakistan. Commercial net metering allows businesses to export surplus solar energy to the grid and receive credits on their electricity bills, often delivering a significant reduction in monthly electricity bills. The inverter includes all required protections including anti-islanding, ground fault detection and arc fault monitoring as required by Pakistani grid standards. Commercial net metering applications require approval from your local DISCO.
- The SAJ H2 16kW three phase comes with a 5 year standard manufacturer warranty. With a maximum efficiency of 98.5% and IP66 weather protection, it is built for long-term commercial deployment in Pakistan's demanding environment. The ultralight design at 53kg makes installation and potential replacement straightforward for certified solar installers. SAJ Electric, founded in 2004, has a proven track record with millions of inverters installed worldwide including in South Asia, the Middle East and Africa — markets with similar climate challenges to Pakistan.
