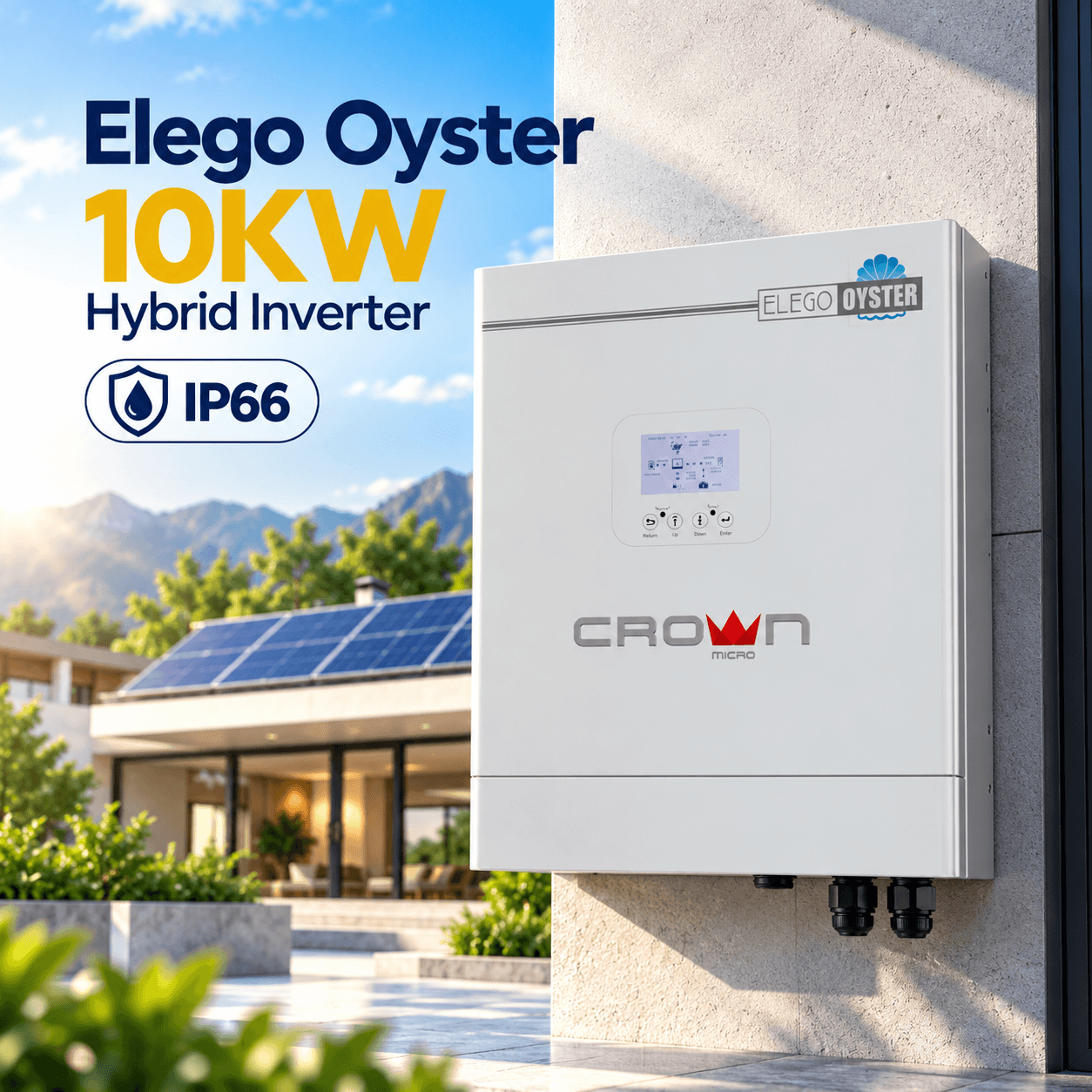

Crown Micro Elego Oyster 10kW Single Phase Hybrid Inverter IP66
Price updated: 04 Oct 2026
In Stock
Delivery in 2-5 working days · Free delivery
The Crown Micro Elego Oyster 10KW is the flagship AI-based hybrid single-phase solar inverter from Crown Micro, delivering 10kW of continuous output for larger homes and small commercial setups in Pakistan. With IP66/NEMA 4X protection, touch color screen, 210A charge/discharge current and 15kWp PV input, it is built for maximum performance and reliability.
- 10kW output — the most powerful single phase model in the Elego Oyster range
- AI-based intelligent energy management
- IP66 / NEMA 4X dual-certified protection
- Touch color screen for intuitive control
- 210A fast charge/discharge current
- Parallel operation up to 6 units
- Compatible with Lead Acid and Lithium-Ion batteries
See how it compares in our Best Solar Inverter in Pakistan 2026 guide.
| Power | 10 kW |
|---|---|
| Phase | Single Phase |
| Type | Hybrid Inverter (AI-Based) |
| Battery Voltage | 48V (40–60V) |
| MPPT | 2 |
| Warranty | 10 Years |
| Battery Type | Lithium-Ion / Lead-Acid |
| Communication | RS485 / Wi-Fi / CAN |
| Dimensions | 536×556×290 mm |
| Max Charge Current | 210A |
| Max Efficiency | 97.5% |
| Max PV Input | 15000 Wp |
| MPPT Efficiency | 99.9% |
| Parallel | Up to 6 units |
| Protection | IP66 / NEMA 4X |
| PV Voltage Range | 100–600V |
| Weight | 42.64 kg |
10 Years manufacturer warranty. Contact us on WhatsApp for warranty claims.
Customer Reviews
–
0 reviews
- 5 star0
- 4 star0
- 3 star0
- 2 star0
- 1 star0
No reviews yet — be the first to share your experience.
Frequently Asked Questions
- The Crown Micro Elego Oyster 10KW is suitable for larger homes — typically 10 marla to 1 kanal — and small commercial properties in Pakistan requiring more than 6.5kW of solar backup power. It can comfortably run two 1.5 ton ACs, heavy appliances, commercial equipment and all standard household loads simultaneously within its 10000W capacity. The IP66/NEMA 4X dual protection rating makes it one of the most weather-resistant inverters in its class, suitable for outdoor installation even in Pakistan's harsh coastal climate in cities like Karachi where salt air corrosion is a concern.
- The Crown Micro Elego Oyster 10KW supports a maximum battery charging and discharging current of 210A at 48V, providing approximately 10.1kW of charging power. This high current means a 16kWh battery can be fully charged in under 2 hours from solar during peak generation. The force wake-up from PV function is also included, which can revive deeply discharged batteries using solar energy alone without any grid connection. For Pakistani homes and businesses that want fast battery replenishment to maximise backup capacity during unpredictable load shedding schedules, the 210A charging capability is a key advantage over lower-current competitors.
- The Crown Micro Elego Oyster 10KW accepts up to 15000 Wp of solar panels across 2 independent MPPT inputs, with a PV input voltage range of 100-600V and MPPT range of 120-500V. In practical terms for Pakistan, this accommodates 22 to 27 panels of 550W each in various string configurations. The 25A maximum input current per MPPT channel supports the latest high-power solar panels available in Pakistan including 600W+ bifacial modules. The wider voltage range compared to the 6.5KW model accommodates longer string lengths suitable for larger rooftops.
- The Crown Micro Elego Oyster 10KW's AI system continuously monitors solar generation, battery state of charge, grid availability and your home's electricity consumption patterns. Over time it learns when your household uses most power — typically morning and evening peak hours — and optimises battery charging and discharging to ensure power is available when you need it most. During Pakistan's summer months when ACs run continuously, the AI prioritises keeping the battery charged during peak solar hours. The system communicates via RS485, Wi-Fi and CAN interfaces, allowing remote monitoring and control through the Crown Micro app.
- The Crown Micro Elego Oyster 10KW comes with a 10 year manufacturer warranty, the same industry-leading coverage as the 6.5KW model. This 10 year warranty is exceptional in the Pakistani solar market where most brands offer only 5 years. The touch colour screen display, smart cooling method and aluminium casing for enhanced corrosion protection all contribute to long-term durability. Crown Micro is an established brand available in Pakistan. For buyers making a premium solar investment, the 10 year warranty significantly reduces total cost of ownership over the inverter's expected 15 to 20 year operational lifespan.
